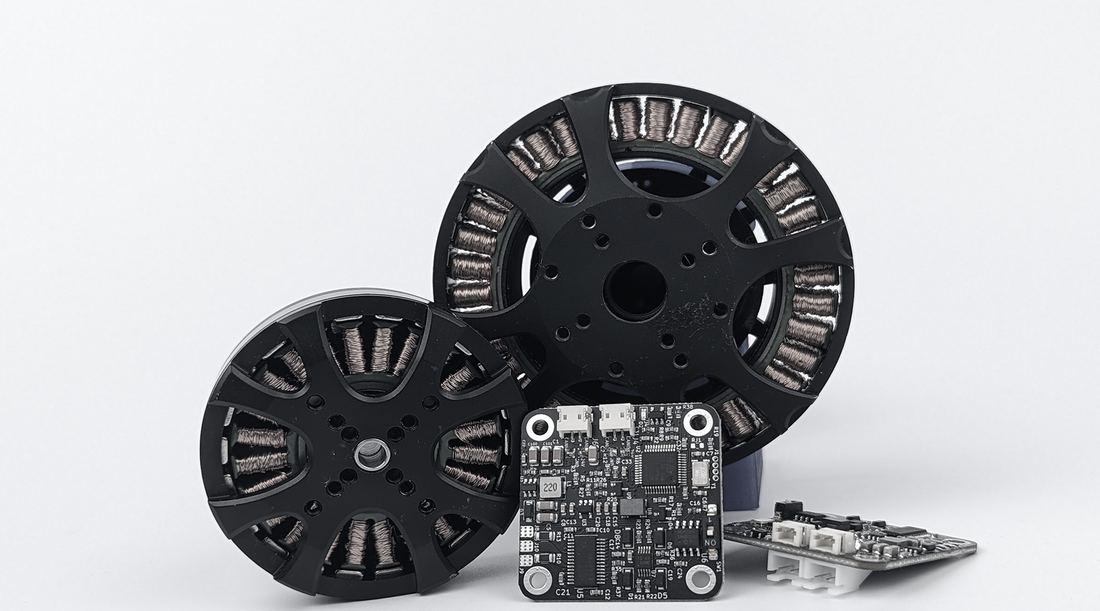

Every robot that lifts, grabs, reaches, or rolls owes its movement to one thing — its joints. Just as the human body relies on knees, hips, and shoulders to navigate the world, robots depend on carefully engineered joints to execute tasks with precision and control. Whether it's a surgical robot performing a delicate incision or an industrial arm welding a car frame, the joints define what a robot can and cannot do.
In this post, we'll break down the main types of joints used in robotics, how they work, and where you're most likely to see them in action.
What Is a Robot Joint?
A robot joint is the point of connection between two rigid links in a robotic system. It's where movement happens. The type of joint determines the degrees of freedom (DOF) — that is, how many independent directions a link can move. More joints, and more varied joint types, generally mean a more capable and versatile robot.
1. Revolute Joints (Rotary Joints)
1 DOF — rotation about a single fixed axis
A revolute joint allows rotation around a single fixed axis — think of a door hinge or your own elbow. One link stays fixed while the other rotates around it. Most robotic arms you see in factories and labs are built almost entirely from revolute joints.
How it works: Motors and gear systems drive the rotation. The angle of rotation is measured and controlled with precision encoders.
Advantages
- Simple and well-understood design
- Precise position and speed control
- Cost-effective for most applications
- Excellent for bending, twisting, and sweeping motions
Disadvantages
- Limited range of motion compared to spherical joints
- High mechanical stress under heavy loads or high speeds
Where you'll see it: Industrial robotic arms, welding robots, assembly lines, collaborative robots (cobots)
2. Prismatic Joints (Linear Joints)
1 DOF — translation along a single straight axis
Where revolute joints rotate, prismatic joints slide. A prismatic joint allows movement along a single axis in a straight line — like a drawer being pulled in and out. There's no rotation involved; everything is linear.
How it works: Linear actuators powered by electric motors (via lead screws or ball screws), pneumatic cylinders, or hydraulic systems drive the motion along guide rails or tracks.
Advantages
- Extremely precise positioning along straight paths
- High force output, especially with hydraulic actuators
- Ideal for pick-and-place and heavy-load tasks
Disadvantages
- Restricted range of motion — only a straight line
- Guide rails and actuators require regular maintenance
- Components wear faster under high-speed, high-load conditions
Where you'll see it: CNC machines, robotic sliders, extendable arms, 3D printers, Cartesian robots
3. Spherical Joints (Ball-and-Socket Joints)
3 DOF — rotation about a single fixed point
A spherical joint works just like the ball-and-socket joint in your hip or shoulder — it allows rotation in multiple directions around a central point. This makes it one of the most versatile joint types available.
How it works: A ball sits inside a curved socket, allowing three-axis rotation. In robotics, this is often driven by multiple actuators working in coordination.
Advantages
- High degree of flexibility and range of motion
- Enables omnidirectional movement from a single joint
- Great for mimicking natural human motion
Disadvantages
- More complex to control (multiple axes at once)
- Higher mechanical complexity and cost
- Harder to achieve fine precision compared to simpler joints
Where you'll see it: Humanoid robots, robotic wrists, prosthetics, surgical robots
4. Universal Joints (Cardan Joints)
2 DOF — rotation across two perpendicular planes
A universal joint — also called a Cardan joint — enables rotation in two different planes simultaneously. Its signature ability is connecting two shafts that are not perfectly aligned, transferring motion smoothly between misaligned components.
How it works: Two yokes connected by a cross-shaped pivot (the "spider") allow power to be transmitted even when the input and output shafts are at an angle to each other.
Advantages
- Accommodates shaft misalignment without losing torque
- Improves maneuverability in complex mechanical systems
- Relatively compact and robust
Disadvantages
- Can introduce velocity fluctuations at larger angles
- Not ideal for high-precision positioning tasks
Where you'll see it: Robotic manipulators, drive shafts in mobile robots, steering mechanisms
5. Cylindrical Joints
2 DOF — rotation and translation about the same axis
A cylindrical joint combines two motions in one: rotation and linear translation — but both along the same axis. Think of a screw: it both spins and moves forward simultaneously.
How it works: The joint allows a link to both rotate around and slide along a central axis, giving it two degrees of freedom within a cylindrical coordinate system.
Advantages
- Versatile — handles both rotational and linear tasks
- Useful in compact designs where space is limited
- Natural fit for cylindrical coordinate robots
Disadvantages
- More complex than purely rotational or purely linear joints
- Requires precise synchronization of both motion types
Where you'll see it: Cylindrical coordinate robots, material handling systems, automated assembly
6. Planar Joints
3 DOF — two translations and one rotation in a plane
A planar joint constrains movement to a single flat plane. It provides two translational degrees of freedom (movement along X and Y axes) and one rotational degree of freedom (rotation around the Z axis) — all within that plane.
How it works: Two surfaces in contact slide against each other in a plane. Think of a flat piece sliding on a table — it can move left/right, forward/backward, and rotate, but never lift off.
Advantages
- High accuracy for two-dimensional tasks
- Excellent for applications requiring flat, repeatable motion
- Simpler dynamics than 3D multi-axis joints
Disadvantages
- No out-of-plane capability — strictly 2D
- Limited use cases compared to more versatile joints
Where you'll see it: XY positioning systems, semiconductor manufacturing, biomedical equipment, painting and welding robots working on flat surfaces
Quick Reference: Joint Types at a Glance
| Joint Type | Motion Type | Degrees of Freedom | Typical Use Case |
|---|---|---|---|
| Revolute | Rotational | 1 | Robotic arms, cobots |
| Prismatic | Linear | 1 | CNC, pick-and-place |
| Spherical | Multi-axis rotational | 3 | Humanoid robots, wrists |
| Universal | Dual-axis rotational | 2 | Drive shafts, manipulators |
| Cylindrical | Rotation + Linear | 2 | Material handling |
| Planar | 2D translation + rotation | 3 | XY systems, flat-surface work |
Why Joint Selection Matters
Choosing the right joint for a robot isn't just a mechanical decision — it shapes the entire system. The joints you pick determine:
- Workspace: How far and in what directions the robot can reach
- Payload capacity: How much weight the robot can safely carry
- Precision: How accurately it can position itself
- Speed: How fast it can operate without losing accuracy
- Cost and complexity: More DOF generally means more actuators, sensors, and control logic
Most real-world robots combine several joint types in a single kinematic chain. A typical 6-DOF industrial arm, for example, might use six revolute joints in series — each adding one more degree of rotational freedom until the end effector can reach almost any position and orientation in its workspace.
