For decades, the dominant approach in robotics has been high gear reduction. That makes sense when you look at where industrial robotics first found major success: automotive manufacturing.
Automotive plants needed robots that could deliver precision, repeatability, and strength in demanding environments. Robots were used for spot welding, painting, material handling, press tending, and foundry work. These applications often required machines that could move heavy loads accurately while keeping people away from dangerous areas of the plant.
That history shaped how most industrial robots were designed.
High Ratio or Low Ratio? Start With Gravity
Before comparing the two approaches, it is important to understand one thing:
Gravity is one of the biggest forces shaping robot design.
A robot arm that reaches out like a human arm must constantly fight gravity. Depending on the pose, several joints may need to support not only the payload, but also the weight of the robot arm itself. This is especially true for articulated 6-axis or 7-axis robots.
That requirement has a huge impact on the gearbox design.
High Gear Ratio COBOT Design
High gear ratios are essential when a robot needs to lift significant weight while still moving like a human arm.
A small, high-speed servomotor can become extremely powerful when paired with a geartrain such as a harmonic drive, cycloidal reducer, or planetary gearbox. A 250:1 gear ratio, for example, multiplies the motor’s torque dramatically at the joint output.
This is what allows large articulated robots to lift tens or even hundreds of kilograms while maintaining a reasonable overall size and weight.
In a 7-axis robot arm, many useful positions require multiple joints to support both the arm and the payload. Without high gear reduction, the motors would need to be much larger, heavier, and less practical.
However, this approach creates an important challenge for collaborative robots.
High gear reduction also reduces the motor’s ability to “feel” external forces at the joint. If the robot arm contacts a person or object, the impact torque is not easily detected through the motor alone. By the time the motor senses the event, the force may already be too high for safe human interaction.
To solve this, high-ratio COBOTs typically require dedicated torque sensing at each joint. A 7-axis robot may therefore need seven separate torque sensors, along with the electronics and control systems required to process that data safely.
This makes the system capable, but also more complex and expensive.
Low Gear Ratio COBOT Design
As robotics moves into lower-payload applications, the design priorities begin to change.
Many modern automation tasks do not require a robot to lift heavy automotive parts or operate in dangerous production cells. Instead, they involve moving small items, loading instruments, transferring trays, handling labware, or assisting with repetitive manual processes.
In these cases, a simpler and lighter robot design can often do the job better.

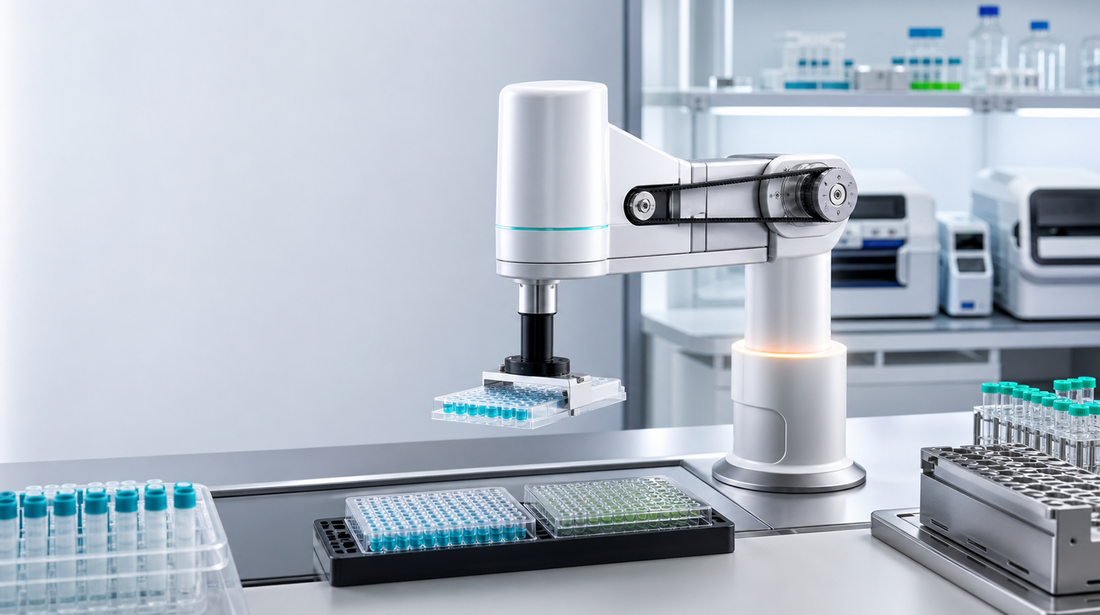

A SCARA robot is a good example. In many SCARA designs, only one axis is directly fighting gravity. The other joints move primarily in the horizontal plane, where gravity has little effect on joint torque.
Because the robot does not need every joint to support a heavy arm against gravity, the joints can be driven with lower gear ratios. In some cases, a simple belt drive between the motor and output joint is enough.
The result is a robot that is lighter, lower friction, and easily backdrivable.
Backdrivability is especially important for collaborative applications. When a joint can be moved easily from the outside, the motor can sense impact forces much more directly and quickly. This makes collision detection simpler and more responsive, often without the need for separate torque or force sensors at every joint.
For low-payload automation, that can mean fewer components, lower cost, better sensitivity, and a robot that is naturally safer around people.
Why This Matters Now
The next major growth phase in robotics is not limited to heavy industrial automation. It is happening in labs, small manufacturing lines, packaging areas, inspection stations, and other environments where people still perform repetitive tasks by hand.
These applications often need robots that are compact, affordable, precise enough, and safe to work near people.
For payloads under 10 kg, low gear ratio designs are becoming an increasingly attractive option. They may not replace high-ratio articulated robots in heavy-duty applications, but they offer a compelling path for a new generation of collaborative automation.
Summary
High gear ratio robots earned their place in industry by solving hard problems in automotive manufacturing: heavy payloads, high precision, dangerous environments, and complex arm motion.
But as robotics expands into lower-payload collaborative applications, low gear ratio designs offer a different set of advantages. They can be lighter, simpler, more backdrivable, and more sensitive to contact forces.
In many of the industries now adopting automation for the first time, that simplicity may be exactly what is needed.
The future of robotics will not be defined by one approach alone. High gear ratio and low gear ratio designs each have their place. The key is choosing the right architecture for the job, the payload, and the way gravity affects the robot’s motion.
